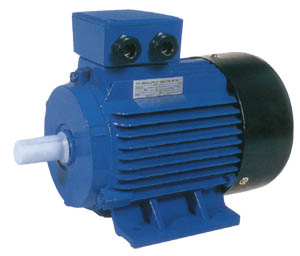

产品名称: Y2 Series Three-Phase Induction Motors
产品说明: Y2 series three-phase induction motors, developed with new techniques, are renewal and upgrading products of Y series. Y2 series motors are defined as totally enclosed, fan cooled, squirrel cage type and noted for their novel design, beautiful modeling, compact structure, low noise high efficiency, large torque, excellent starting performance, easy service, etc. The motors are adopted with F class insulation and designed with assessing method for insulation system according to international practice, it enhances greatly motor’s safety and reliability. Therefore, these motors have reached an international advanced level of the same kind products at the initial days of the 90s. Y2 series motors can be widely used as driving equipments of various machineries, same as, machine tools, blowers, pumps, compressors, transporters, agricultural and food processing.
技术参数



Model Power Current
(A) 		Speed
(r/min)		 Eff(%) Power factor
Transfer
Torque
Rated
Torque
Transfer
Current
Rated
Current
Max.
Torque
Rated
Torque
Mix.
Torque
Rated
Torque
Hp Kw
Y2-631-2 1/4 0.18 0.5 2730 65 0.80 2.2 5.5 2.2 1.6
Y2-632-2 1/3 0.25 0.7 2725 68 0.81 2.2 5.5 2.2 1.6
Y2-711-2 1/2 0.37 0.9 2755 70 0.81 2.2 6.1 2.2 1.6
Y2-712-2 3/4 0.55 1.3 2790 73 0.82 2.2 6.1 2.3 1.6
Y2-801-2 1 0.75 1.7 2845 75 0.83 2.2 6.1 2.3 1.5
Y2-802-2 1.5 1.1 2.5 2840 77 0.84 2.2 7.0 2.3 1.5
Y2-90S-2 2 1.5 3.3 2840 79 0.84 2.2 7.0 2.3 1.5
Y2-90L-2 3 2.2 4.6 2840 81 0.85 2.2 7.0 2.3 1.4
Y2-100L-2 4 3 6.0 2860 83 0.87 2.2 7.5 2.3 1.4
Y2-112M-2 5.5 4 7.7 2880 85 0.88 2.2 7.5 2.3 1.4
Y2-132S1-2 7.5 5.5 10.5 2910 86 0.88 2.2 7.5 2.3 1.2
Y2-132S2-2 10 7.5 14.1 2900 87 0.88 2.2 7.5 2.3 1.2
Y2-160M1-2 15 11 20.3 2920 88 0.89 2.2 7.5 2.3 1.2
Y2-160M1-2 20 15 27.3 2920 89 0.89 2.2 7.5 2.3 1.2
Y2-160L-2 25 18.5 33.0 2920 90 0.90 2.2 7.5 2.3 1.1
Y2-180M-2 30 22 39.0 2920 90 0.90 2.0 7.5 2.3 1.1
Y2-200L1-2 40 30 52.8 2930 91.5 0.90 2.0 7.5 2.3 1.1
Y2-200L2-2 50 37 64.5 2940 92 0.90 2.0 7.5 2.3 1.1
Y2-225M-2 60 45 78.2 2940 92.3 0.90 2.0 7.5 2.3 1.0
Y2-250M-2 75 55 95 2960 92.5 0.90 2.0 7.5 2.3 1.0
Y2-631-4 1/6 0.12 0.4 2965 57 0.72 2.1 4.4 2.3 1.7
Y2-632-4 1/4 0.18 0.6 1315 60 0.73 2.1 4.4 2.2 1.0
Y2-711-4 1/3 0.25 0.8 1315 65 0.74 2.1 5.2 2.2 1.7
Y2-712-4 1/2 0.37 1.1 1345 67 0.75 2.1 5.2 2.2 1.7
Y2-801-4 3/4 0.55 1.5 1340 71 0.75 2.3 5.2 2.2 1.7
Y2-802-4 1 0.75 1.9 1390 73 0.76 2.3 6.0 2.3 1.6
Y2-90S-4 1.5 1.1 2.7 1380 75 0.77 2.3 6.0 2.3 1.6
Y2-90L-4 2 1.5 3.5 1390 78 0.79 2.3 7.0 2.3 1.6
Y2-100L1-4 3 2.2 4.9 1410 80 0.81 2.3 7.0 2.3 1.5
Y2-100L2-4 4 3 6.4 1410 82 0.82 2.3 7.0 2.3 1.5
Y2-112M-4 5.5 4 8.3 1410 84 0.82 2.3 7.0 2.3 1.5
Y2-132S-4 7.5 5.5 11.3 1435 85 0.83 2.3 7.0 2.3 1.4
Y2-132M-4 10 7.5 14.8 1445 87 0.84 2.2 7.0 2.3 1.4
Y2-160M-4 15 11 21.2 1445 88 0.84 2.2 7.5 2.3 1.4
Y2-160L-4 20 15 28.6 1450 89 0.85 2.2 7.5 2.3 1.4
Y2-180M-4 25 18.5 34.7 1450 90.5 0.86 2.2 7.5 2.3 1.2
Y2-180L-4 30 22 41.1 1460 91 0.86 2.2 7.2 2.3 1.2
Y2-200L-4 40 30 54.7 1460 92 0.86 2.2 7.2 2.3 1.2
Y2-225S-4 50 37 66.4 1470 92.5 0.87 2.2 7.2 2.3 1.2
Y2-225M-4 60 45 80.4 1480 92.8 0.87 2.2 7.2 2.3 1.1
Y2-250M-4 75 55 97.9 1480 93 0.87 2.2 7.2 2.3 1.1
Y2-711-6 0.25 0.18 0.7 900 56 0.66 1.9 4.0 2.0 1.3
Y2-712-6 0.33 0.25 0.9 900 59 0.68 1.9 4.0 2.0 1.3
Y2-801-6 0.5 0.37 1.2 900 62 0.70 1.9 4.7 2.0 1.3
Y2-802-6 0.75 0.55 1.7 900 65 0.72 1.9 4.7 2.1 1.3
Y2-90S-6 1 0.75 2.2 910 69 0.72 2.0 5.5 2.1 1.3
Y2-90L-6 1.5 1.1 3.0 910 72 0.73 2.0 5.5 2.1 1.3
Y2-100L-6 2 1.5 3.7 940 76 0.76 2.0 5.5 2.1 1.3
Y2-112M-6 3 2.2 5.3 940 79 0.76 2.1 6.5 2.1 1.3
Y2-132S-6 4 3 7.0 960 81 0.76 2.1 6.5 2.1 1.3
Y2-132M1-6 5.5 4 9.3 960 82 0.76 2.1 6.5 2.1 1.3
Y2-132M2-6 7.5 5.5 12.3 960 84 0.77 2.1 6.5 2.1 1.3
Y2-160M-6 10 7.5 16.1 970 86 0.78 2.0 6.5 2.1 1.3
Y2-160L-6 15 11 23.0 970 87.5 0.79 2.0 6.5 2.1 1.3
Y2-180L-6 20 15 30.0 970 89 0.81 2.1 7.0 2.1 1.2
Y2-200L1-6 25 18.5 36.6 970 90 0.81 2.1 7.0 2.1 1.2
Y2-200L2-6 30 22 42.5 970 90 0.83 2.1 7.0 2.1 1.2
Y2-225M-6 40 30 56.3 980 91.5 0.84 2.0 7.0 2.1 1.2
Y2-250M-6 50 37 67.5 965 92 0.86 2.1 7.0 2.1 1.2
