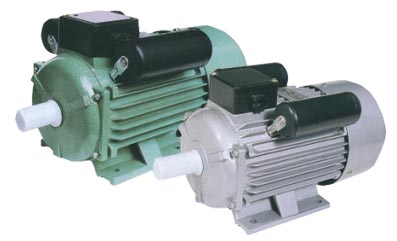

产品名称: YC Series Heavy-Duty Single-Phase Capacitor Starting Induction Motor
产品说明: YC series heavy-duty single-phase motors are suitable for powering small type machine tools and water pumps，specially for family work shops where only single-phase current supply is available.Motors of the said series are integrated with up-to-date design，built with the best quality materials and possess the features of pleasant-looking appearance，outstanding performance，easy maintenance and reliable running.The designations，signs and norminal values are all in conformity with I.E.C.standards. YC series protected motors are of IP44 totally enclosed fan-cooling type，rated output is 3HP or below with capacitor starting.Under rated voltage and 50Hz，the starting torque is 2.5 times more than the rated torque.Motors for 4HP or over are of capacitor start and run type.They all concentrate the advantages of high starting torque、smooth running、low temperature rise、low noise and greater overload performance. YCL Series heavy duty single phase capacitor start and run induction motors are suitable for powering small-type machine tools and water pumps，specially for family workshops where only single-phase current supply is available.Motors of the said se-ries are integrated with up-to date design，built with the best quality materials and possess the features of pleasant-looking appearance，outstanding performance，easy maintenance and reliable running.The de-signations,signs and nominal values are all in conformity with I.E.C standards.
技术参数



Model
HP
Current
(A)
Speed
(r/min)
Eff
(%)
Power
factor
Transfer
Torque
Rated
Torque
Transfer
Current
Rated
Current
Max.
Torque
Rated
Torque
Weight
(Kg)
HP
(KW)
YC80A-2
1/2
037
3.7
2880
62
0.73
2.8
6.5
1.8
10
YC80B-2
3/4
0.55
5.3
2880
65
0.73
2.8
6.5
1.8
11
YC80C-2
1
0.75
6.7
2880
68
0.75
2.4
6.5
1.8
13
YC90S-2
1.5
1.1
7.2
2880
73.2
0.95
2.8
6.0
1.8
17
YC90L-2
2
1.5
8.9
2900
79.32
0.97
2.8
7.0
1.8
22
YC100L-2
3
2.2
13.2
2900
78.8
0.96
3.0
6.5
1.8
29
YC80A-4
1/3
0.25
3.4
1450
56
0.60
2.8
6
1.8
10
YC80B-4
1/2
0.37
4.5
1450
60
0.62
2.8
6
1.8
11
YC80C-4
3/4
0.55
6.0
1450
64
0.65
2.8
6
1.8
13
YC90S-4
1
0.75
5.5
1450
73.3
0.93
2.8
6.5
1.8
17
YC90L-4
1.5
1.1
7.8
1450
71
0.90
2.5
6.0
1.8
22
YC100L-4
2
1.5
9.3
1450
79.4
0.92
2.8
7.0
1.8
29
YC112M1-4
4
3
18.4
1450
78
0.95
2.1
6.0
1.8
40
YC112M2-4
5
3.7
22.4
1450
78
0.95
2.1
6.0
1.8
 　
YC132SA-4
4
3
25.2
1450
74
0.73
2.1
6.5
1.8
55
YC132SB-4
5
3.7
30
1450
75
0.74
2.1
6.5
1.8
60
YC132M1-4
7.5
5.5
32.5
1450
85
0.90
2.0
6.5
1.8
 　
YC132M2-4
10
7.5
40
1450
85
0.90
2.0
6.5
1.8
